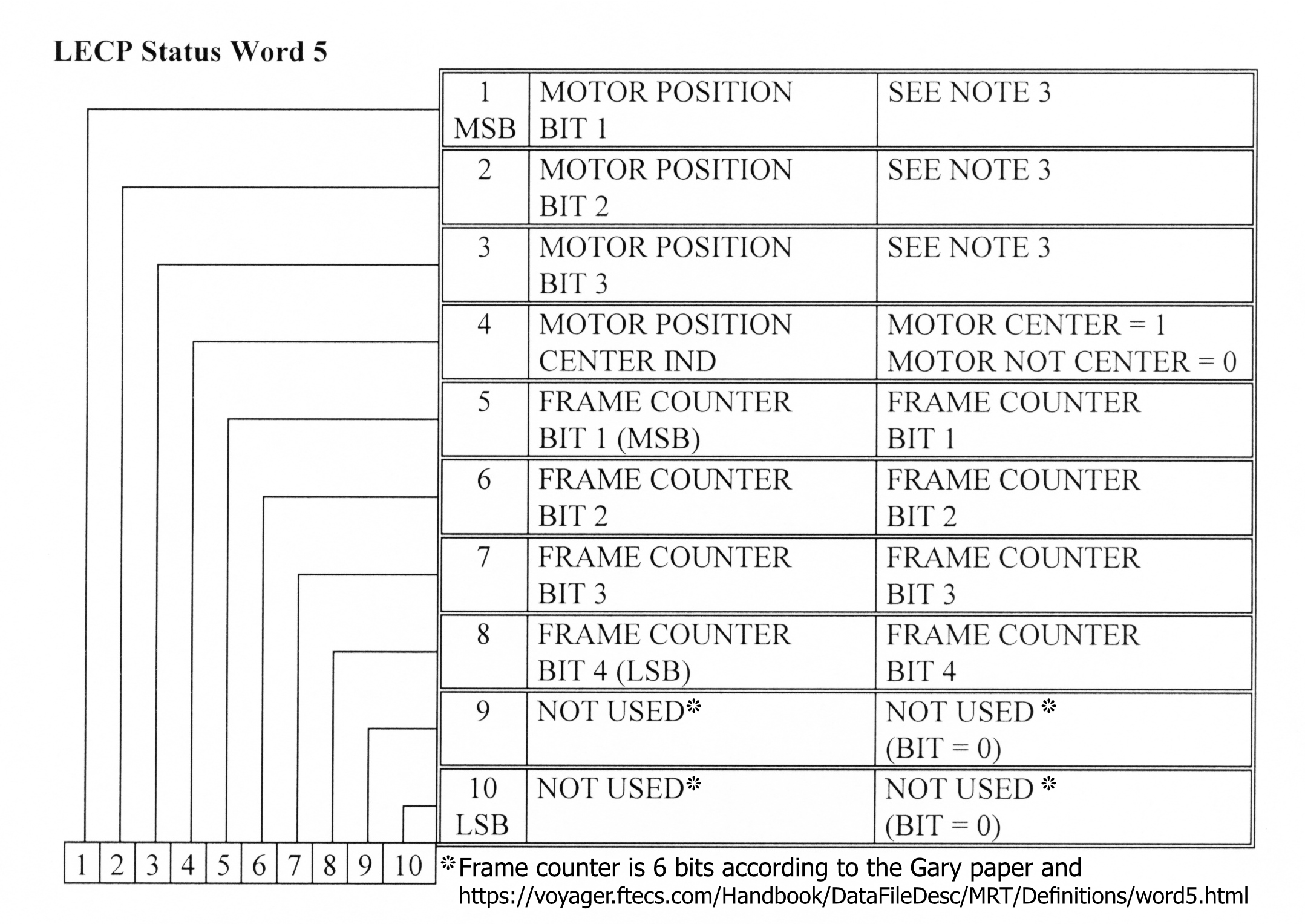

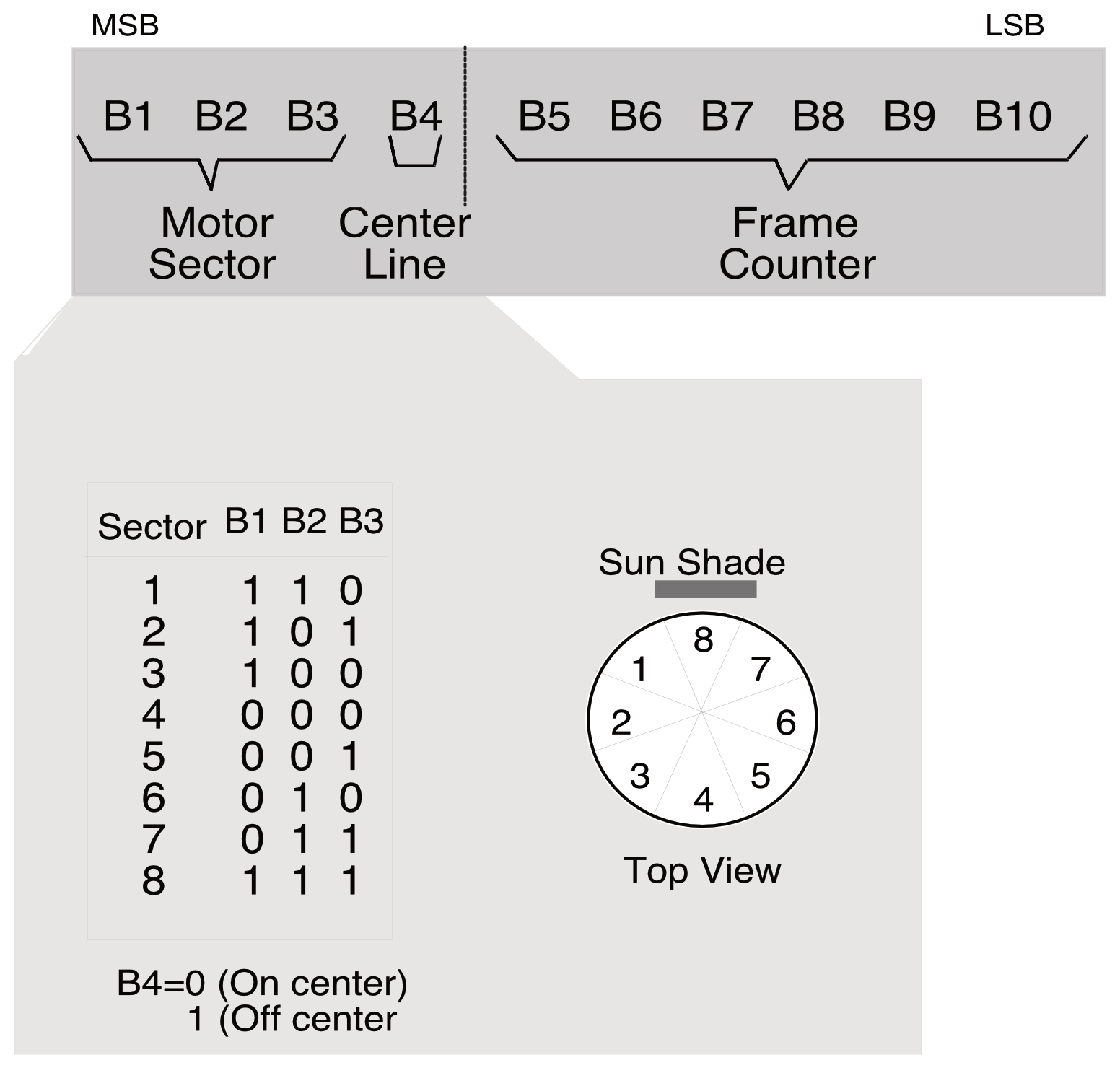

Note 3:
| Bits | Motor Position Sector | ||
|---|---|---|---|
| 1 | 2 | 3 | |
| 1 | 1 | 0 | 1 |
| 1 | 0 | 1 | 2 |
| 1 | 0 | 0 | 3 |
| 0 | 0 | 0 | 4 |
| 0 | 0 | 1 | 5 |
| 0 | 1 | 0 | 6 |
| 0 | 1 | 1 | 7 |
| 1 | 1 | 1 | 8 |
Note 4: Use of frame counter is described in Note 3 of Table 33.
sel - The documentation for bits 9 and 10 is incorrect. The lowest 3 bits of status word 5 are used to demux the singles rates in rate 42.
| Value | Rate |
|---|---|
| 0 | E5 |
| 1 | AL |
| 2 | AR |
| 3 | E0 |
| 4 | E1 |
| 5 | E2 |
| 6 | E3 |
| 7 | E4 |
