Fundamental TechnologiesVoyager LECP Pages |

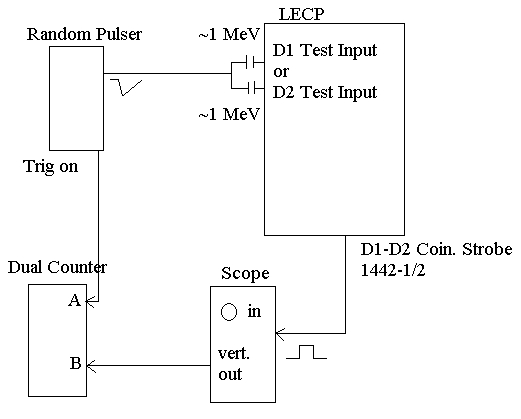

LEPT:
Input Rate |
Output Rate |
|
(Cycles per Second) |
||
855 |
852 |
Random Rates |
6419 |
6290 |
|
9950 |
9656 |
|
31606 |
28335 |
|
54354 |
44595 |
|
94.4K |
66.1K |
|
156K |
81.8K |
|
217K |
91.8K |
|
341K |
103K |
|
508K |
110K |
|
20.0K |
18.7K |
|
42.6K |
36.5K |
|
148K |
148K |
Fixed Rates |
173K |
173K |
|
193K |
182K |
|
205K |
66K |
|
225K |
31.7K |
Feb. 5, 1979

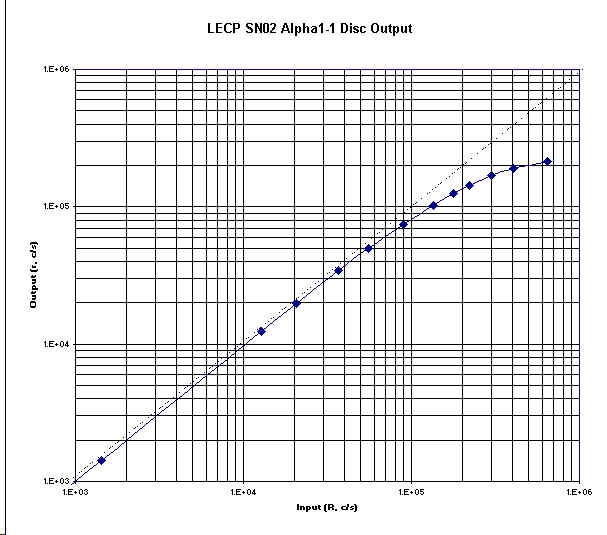

a Channel
100 KeV into a Test Input from Random Pulser
Read out on a1-1 discriminator
Input Rate |
Output Rate |
(Cycles per Second) |
|
526 |
525 |
1433 |
1429 |
12,713 |
12,393 |
20,593 |
19,808 |
36.7K |
34.5K |
55.1K |
49.9K |
90.0K |
74.3K |
135K |
103K |
178K |
125K |
220K |
143K |
300K |
169K |
404K |
190K |
647K |
