February 6, 1979
b Channel
100 keV into b, read out on b-1 disc.
Input Rate | Output Rate |
649 cps | 649 cps |
1.43 kc | 1.43 kc |
3.02 | 3.00 |
8.52 | 8.40 |
12.5 | 12.2 |
18.9 | 18.3 |
35.4 | 33.4 |
67.0 | 59.2 |
134 | 103 |
156 | 113 |
242 | 151 |
324 | 174 |
431 | 190 |
630 | 206 |
b' Channel
Input | Output |
12.6 kc | 12.4 kc |
35.8 | 34.0 |
78.9 | 68.6 |
132 | 102 |
166 | 121 |
229 | 149 |
316 | 176 |
501 | 203 |
633 | 214 |

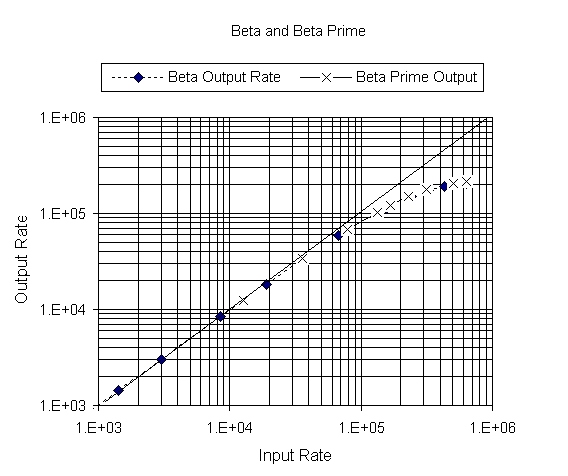

Figure: Feb. 6, 1979, LECP SN02, b-1 Disc Output, Random Pulse Input, ~100 keV
