UNIT: S/N-3 DATE: 27 JUN 77
FU-2

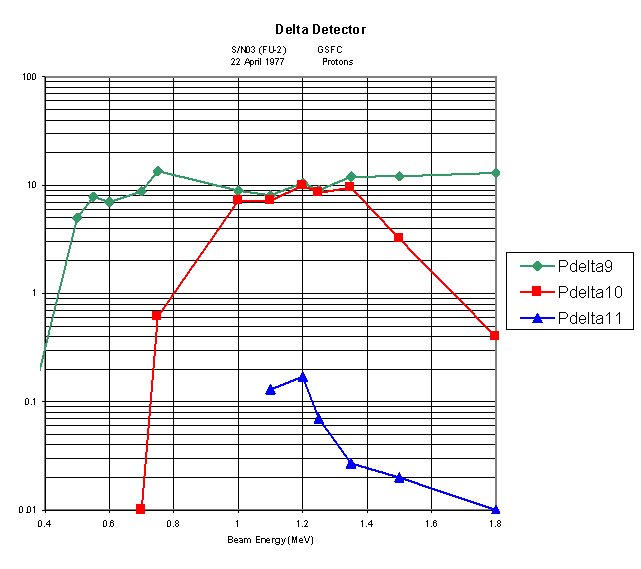

Subsystem: LEMPA d and d’
| Detector Data | d |
d’ |
| Identification # | 1907 |
1912 |
| Thickness | 20.8 |
20.0 |
| Area | 1.30 |
1.50 |
| Resolution | ||
| Inactive Window | 40 mg/cm2 |
40 mg/cm2 |
Electronic
Linear Thresholds
Nominal |
Actual (Pulser) |
||
1. |
Pd9 |
250 keV |
284 |
2. |
Pd10 |
375 keV |
480 |
3. |
Pd11 |
625 keV |
720 |
4. |
Ad3 |
1.50 MeV |
1.92 |
5. |
Ad4 |
2.5 MeV |
3.12 |
6. |
Zd1 |
6.0 MeV |
6.51 |
Double Pulse Resolving Time: 25 ms
Mechanical:
d Look Angle: ± 14.5° = 29°
d Geometric Factor: 2.6 ´ 10-3 cm2sr
d’
Step |
Look Angle |
Solid Angle |
Geometric Factor |
1 |
0.080 mm2sr |
||
2 |
| |
||
3 |
| |
||
4 |
| |
||
5 |
| |
||
6 |
| |
||
7 |
V |
