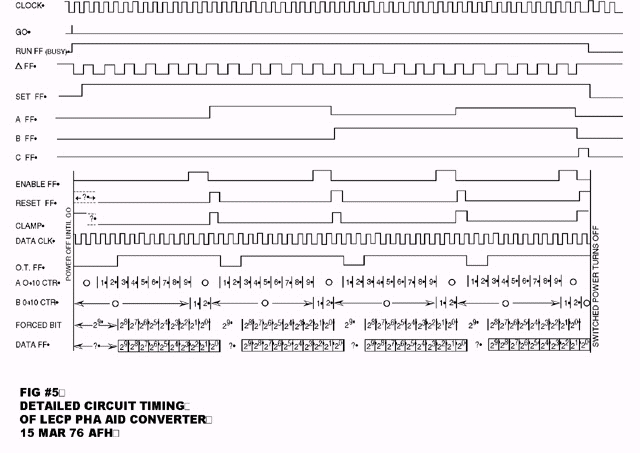

Figure 5. Detailed circuit timing of LECP PHA A/D converter.

Overview or thumbnail below. Click here for PDF file (large).
